GangHeng Transformer Substations are fully sealed, factory-assembled power distribution units built for 6–10kV grids, covering both European-style prefabricated substations and American-style pad-mounted substations from 50 to 1600kVA. Engineered for compact footprint, quick installation, and reliable outdoor operation, they are widely used in urban construction, residential communities, industrial parks, mining sites, and utility networks. As a National High-Tech Enterprise and State Grid certified supplier since 2004, GangHeng delivers fully customized substations with no minimum order quantity and fast lead times.
-
The Pad Mounted Substation is the first generation of domestically produced American-style box-type substations launched by our company. As an important power supply unit in -
Application Scope: Suitable for 50Hz, 6-10kV grids with rated capacities ranging from 50 to 1600kVA. Widely applied in various settings such as high-rise buildings, residential
What is a Transformer Substation?
A transformer substation is a factory-assembled, fully enclosed power distribution unit that combines a distribution transformer, high-voltage switchgear, and low-voltage distribution equipment inside a single weatherproof enclosure. Instead of building a separate substation room on site, the entire unit arrives pre-wired and pre-tested, ready to be positioned on a concrete pad and connected to the grid. Transformer substations are typically rated for 6–10kV incoming voltage and 0.4kV output, with capacities ranging from 50kVA up to 1600kVA depending on the load requirement. They are commonly used wherever a compact, fast-to-install power source is needed close to the point of consumption — from residential compounds to remote mining sites. GangHeng manufactures two main product families under this category: the European-style prefabricated substation and the American-style pad-mounted substation, both built to operate reliably in outdoor conditions with minimal maintenance.
Advantages of GangHeng Transformer Substations
Compact, Space-Saving Footprint
GangHeng's pad-mounted substations occupy as little as 1/3 to 1/5 of the space required by a conventional European-style box substation of the same capacity, making them ideal for sites where land is limited or expensive.
Fully Sealed, Fully Insulated Design
Both product lines use fully sealed, fully insulated construction, eliminating the need for large safety clearance distances and significantly reducing the risk of accidental contact with live parts.
Flexible Grid Connection
The high-voltage side can be connected for either ring-network (loop) operation or as a radial terminal supply, giving engineers flexibility when designing distribution networks for new developments or upgrades.
Low Loss, Low Noise Transformer Performance
The integrated transformers are designed for low no-load loss, low load loss, and low noise levels (as low as 45dB in-house, well under the 55dB international benchmark), keeping long-term operating costs down.
Strong Overload and Short-Circuit Capability
The switchgear inside is rated for short-time withstand currents up to 20kA (2–4s) and peak withstand currents up to 50kA at 12kV, giving the substation strong resilience against fault conditions.
Ready for Harsh Outdoor Environments
Rated for altitudes up to 1000m, ambient temperatures from -30°C to +45°C, seismic intensity up to level 8, and wind speeds up to 35m/s, GangHeng substations are built to perform in demanding climates without special protection.
Transformer Substation Specifications
|
Parameter |
European-Style Prefabricated Substation |
American-Style Pad-Mounted Substation |
|
Rated HV Voltage |
12kV |
12kV |
|
Rated LV Voltage |
0.4kV |
0.4kV |
|
Rated Capacity Range |
50–1600kVA |
80–1600kVA |
|
Rated Frequency |
50Hz (60Hz available) |
50Hz (60Hz available) |
|
Rated Current (HV) |
400A / 600A |
400A / 630A |
|
Rated Current (LV) |
100A–2500A |
— |
|
Short-Time Withstand Current (HV, 12kV) |
16kA/20kA, 2s(4s) |
12.5kA/16kA, 2s/4s |
|
Peak Withstand Current (HV, 12kV) |
40kA / 50kA |
31.5kA / 40kA |
|
Lightning Impulse Withstand Voltage |
75kV |
75(85)kV |
|
Power-Frequency Withstand Voltage (1min) |
42kV |
42(48)kV |
|
Protection Class |
IP33 |
IP33 |
|
Ambient Temperature |
-25°C to +40°C |
-30°C to +45°C |
|
Altitude |
≤1000m |
≤1000m |
|
Noise Level |
≤50dB (oil-type) / ≤55dB (dry-type) |
≤50dB (oil-type) / ≤55dB (dry-type) |
|
Reactive Power Compensation |
30% of transformer capacity (adjustable) |
— |
Full technical datasheets, including transformer loss tables and dielectric test values, are available on request or on the individual product pages.
Types of Transformer Substation
European-Style Prefabricated Substation (Box-Type Substation)
Designed for compact, all-in-one installation in urban construction, residential compounds, factories, hotels, ports, airports, and railway sites, this series integrates the transformer, high-voltage switchgear, and low-voltage panel into one steel enclosure with an attractive exterior finish. It supports remote "four-remote" management through a central monitoring system and can be used for both ring-network and terminal power supply.
American-Style Pad-Mounted Substation
GangHeng's first-generation domestically produced American-style pad-mounted substation places the high-voltage load switch and fuse inside the transformer's own oil tank, sharing the same sealed enclosure as the transformer. This design uses plug-in dry-type fuses so that a fuse operation does not affect the transformer oil, and it is available in standard, reinforced, and integrated enclosure types depending on the complexity of the low-voltage outgoing requirements.
Applications of Transformer Substations
Urban Residential Communities & High-Rise Buildings
Compact enough for tight urban plots, these substations bring reliable low-voltage power directly into new residential developments and high-rise complexes without requiring a dedicated substation building.
Power Plants & Utility Substations
As a certified State Grid supplier, GangHeng substations are used as auxiliary or terminal distribution units within power plants and utility substations, supporting stable "four-remote" grid operation.
Industrial Parks, Factories & Mining Sites
Rugged construction and strong overload capability make these substations suitable for factories, mines, and quarries, where they provide dependable on-site power even in harsh, dusty, or vibration-prone environments.
Petrochemical & Metallurgical Facilities
The fully sealed, fully insulated design helps meet the stricter safety requirements common in petrochemical and steel/metallurgical plants where electrical safety and reliability are critical.
Commercial Buildings, Hotels & Public Facilities
Compact box-type designs allow substations to be discreetly placed near shopping centers, hotels, and public venues, supplying power without disrupting the surrounding architecture.
Transportation Infrastructure
Ports, airports, and railway facilities rely on these substations for localized power supply where installation space and commissioning speed are both priorities.
Why Choose GangHeng as Your Transformer Substation Supplier?
20+ Years of Manufacturing Experience
Founded in 2004, GangHeng has more than two decades of experience designing and manufacturing switchgear, transformers, and complete substation systems for both domestic and export markets.
National High-Tech Enterprise, State Grid Certified
GangHeng holds National High-Tech Enterprise status and is a qualified supplier listed on the State Grid e-commerce procurement platform, reflecting a consistent track record of meeting utility-grade quality requirements.
Full Customization Capability
With in-house CNC punching, CNC bending, and laser cutting equipment, GangHeng can adapt enclosure dimensions, outgoing configurations, and internal layouts to match project-specific drawings rather than offering only fixed catalog models.
Competitive, Transparent Lead Times
Production schedules scale with order size — typically around 30 days for smaller orders, 45 days for mid-size orders, and 60 days for large-volume contracts — giving buyers clear expectations for project planning.
qualified
We always use natural wood and log as materials, without any splicing or chemical processing, which is natural, environment-friendly and of good quality. Give your home the best touch and atmosphere
Multi-Standard Compliance for Export Projects
While GB/T is the baseline national standard, GangHeng can manufacture to ANSI/IEEE or BS standards on request, supporting buyers who need equipment aligned with North American or British specification requirements.
Manufacturing Process

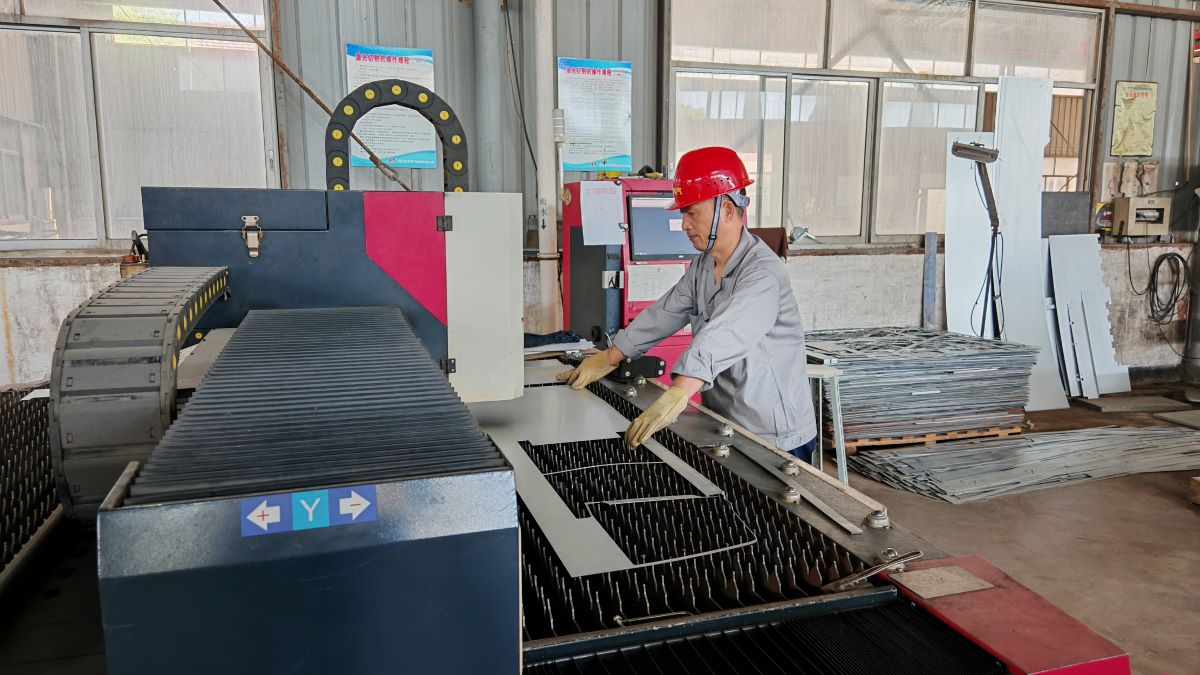

GangHeng's transformer substations are built on a fully equipped production line that includes CNC punching machines, CNC bending machines, laser cutting machines, and dedicated copper busbar bending machines, supported by a range of testing equipment for dielectric and mechanical verification. Sheet metal enclosures are precision-cut and formed in-house, ensuring consistent panel fit and a clean exterior finish. Copper busbars are shaped and insulated in-house rather than outsourced, helping maintain tight tolerances on current-carrying components. Each completed substation undergoes routine electrical testing — including withstand voltage and mechanical operation checks — before it leaves the factory, so that the unit arriving on site has already been verified against its rated parameters.
How to Order a Custom Transformer Substation
1. Submit Your Requirements
Share your required capacity (kVA), voltage level, installation environment, and any applicable standard (GB/T, ANSI/IEEE, or BS).
2. Technical Confirmation
GangHeng's engineering team confirms specifications and, for non-standard projects, provides a one-line diagram and enclosure dimension drawing for your approval.
3. Quotation & Contract
Once the technical scheme is confirmed, a formal quotation and lead time (based on order value) are issued.
4. Production & In-House Testing
The substation is manufactured and tested in-house, with photos or a factory acceptance test (FAT) available on request before shipment.
5. Shipment & On-Site Support
Units are shipped with full technical documentation, and GangHeng's after-sales team remains available for installation guidance and commissioning support.
Customer Cases
Certifications & Quality Control
GangHeng's quality system is certified to ISO9001 (Quality Management), ISO14001 (Environmental Management), and OHSAS18001 (Occupational Health & Safety Management), and its products carry CQC (China Quality Certification) product certification. High-voltage switchgear components used in GangHeng substations have passed formal type test reporting, and the company holds multiple utility model patents covering its equipment design. GangHeng products are also listed on the State Grid e-commerce procurement platform, a listing that requires meeting the Grid's own supplier qualification review.
Our Factory & Equipment
Founded in 2004 in Jiangshan City, Zhejiang Province, GangHeng operates from a production base covering roughly 5,000–20,000 square meters, strategically located at the transport hub connecting Zhejiang, Fujian, Jiangxi, and Anhui provinces — under 3km from the G3 Expressway's Quzhou South exit and under 7km from Jiangshan Railway Station. The company employs between 50 and 200 staff and generates estimated annual revenue in the range of RMB 50–100 million. Manufacturing is built around CNC punching machines, CNC bending machines, laser cutting machines, copper busbar bending machines, and dedicated electrical testing equipment, supporting both standard production runs and fully customized project orders. GangHeng's products have shipped to export markets including Iran, Kyrgyzstan, Zimbabwe, and Tanzania, alongside nationwide coverage across China with a strong base in the Zhejiang-Fujian-Jiangxi-Anhui region.
Frequently Asked Questions About Transformer Substations
Q: 1. What is the difference between a pad-mounted substation and a prefabricated substation?
A: A pad-mounted (American-style) substation integrates the high-voltage switch, fuse, and transformer inside a single shared oil tank, giving it a smaller footprint. A prefabricated (European-style) substation houses the transformer and switchgear in separate compartments within one enclosure, offering a more traditional layout with easier component-level access.
Q: 2. What capacity range do GangHeng transformer substations cover?
A: Standard capacities range from 50kVA to 1600kVA, covering common capacity steps such as 100, 200, 315, 500, 800, 1000, and 1600kVA. Non-standard capacities can be discussed on request.
Q: 3. What voltage levels are supported?
A: Both product lines are rated for 12kV on the high-voltage side and 0.4kV on the low-voltage side, suitable for standard 6–10kV distribution grids.
Q: 4. Can the substation be used outdoors year-round?
A: Yes. Both series are rated for outdoor use with ambient temperatures from -25°C/-30°C up to +40°C/+45°C, altitudes up to 1000m, and wind speeds up to 35m/s, with a protection class of IP33.
Q: 5. Do GangHeng substations meet international standards?
A: Production is based on China's GB/T national standards by default. For export projects, GangHeng can manufacture to ANSI/IEEE (North America) or BS (UK) standards upon request.
Q: 6. Is there a minimum order quantity (MOQ)?
A: No. GangHeng accepts orders starting from a single unit, which is uncommon among manufacturers of this equipment type.
Q: 7. What is the typical lead time?
A: Lead time scales with order size — approximately 30 days for smaller orders, 45 days for mid-size orders, and around 60 days for large-volume contracts.
Q: 8. Can the substation be customized for a specific project?
A: Yes. Enclosure dimensions, outgoing cable configurations, internal layout, and even exterior finish can be adjusted based on your project drawings and site requirements.
Q: 9. What certifications does GangHeng hold?
A: GangHeng is certified to ISO9001, ISO14001, and OHSAS18001, and its products carry CQC certification along with formal type test reports for high-voltage switchgear components.
Q: 10. What warranty is provided?
A: GangHeng provides a 12-month free warranty after acceptance, and continues to take responsibility for hidden defects for up to 5 years after the warranty period ends.
Q: 11. Does GangHeng offer after-sales support for overseas customers?
A: Yes. GangHeng provides technical documentation, installation guidance, and responsive support for defect and spare-parts handling, with spare parts priced no higher than standard market rates.
Q: 12. Can the substation be used for ring-network (loop) power supply?
A: Yes, the European-style prefabricated substation supports both ring-network operation and terminal (radial) supply, giving flexibility for different grid layouts.
Q: 13. What kind of protection does the equipment have against short circuits?
A: High-voltage switchgear inside the substations is rated for short-time withstand currents up to 20kA and peak withstand currents up to 50kA at 12kV, depending on the model and capacity.
Q: 14. How noisy is the equipment during operation?
A: Rated noise levels are ≤50dB for oil-immersed transformer versions and ≤55dB for dry-type versions, which is generally suitable for placement near occupied buildings.
Q: 5. What export markets has GangHeng served?
A: GangHeng has exported equipment to markets including Iran, Kyrgyzstan, Zimbabwe, and Tanzania, in addition to serving customers across mainland China.
