Product Description
Zhejiang GangHeng SCBH15 315kVA 10kV solar PV low no-load loss dry transformer is an epoxy resin transformer with cast coil construction, offering excellent moisture and pollution resistance. Its no-load loss is ≤0.5kW, 60% lower than standard dry transformers, which perfectly matches the intermittent generation pattern of PV plants. This unit also works as a dry type isolation transformer for safe grid-tie networking, providing clean 10kV/0.4kV step-down power distribution. It has passed 72-hour live test, holds CQC/ISO certifications, and has been successfully deployed in PV projects in Iran, Zimbabwe, etc.
Core Parameters
• Rated High Voltage: 10kV
• Rated Low Voltage: 0.4kV
• Rated Capacity: 315kVA
•Vector Group: Dyn11
• No-Load Loss: ≤0.5kW
• Insulation Level: 170kV,3s
• Cooling Method: AN (Air Natural)
• Protection Class: IP20
Selling Points
- PV-optimized low no-load loss – ≤0.5kW, cuts standby waste by 60%.
- Epoxy resin transformer – High mechanical strength, moisture-proof, ideal for outdoor PV farms.
- Dry type isolation transformer ready – Enables flexible and safe grid-tie networking without extra equipment.
- Weather-resistant insulation – Withstands UV, humidity, and temperature variation (service life ≥20 years).
- Certified & supported – CQC, ISO9001/14001, 7/24 service, 1-year warranty.

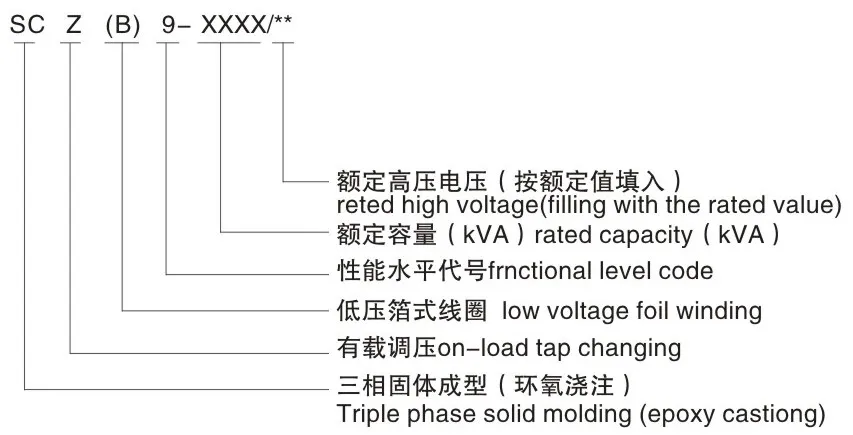

Model
Product Attributes, Functions & Benefits
|
Product Attribute |
Function |
Benefit |
|
Low no-load loss design |
Reduces energy waste during PV power generation downtime |
Annual energy saving ≥3000kWh for 1MW PV station |
|
Weather-resistant insulation materials |
Resists high temperature, humidity and UV radiation outdoors |
Service life in outdoor PV station ≥20 years |
|
Compatibility with dry type isolation transformer |
Realizes safe isolation and flexible capacity expansion of PV grid-connected system |
Adapts to 500kW-1MW PV station capacity expansion needs |
Application Scenarios
Solar PV Power Plants
Grid-connected power distribution for distributed and centralized PV stations.
PV Supporting Facilities
Power supply for PV inverter rooms and monitoring centers.
New Energy Industrial Parks
Comprehensive power distribution for PV + energy storage systems.
Rural PV Projects
Distributed PV grid connection in rural and remote areas.
About Our Company
Foundational Strength
Founded in 2004, specializing in new energy & traditional electrical equipment R&D; National High-Tech Enterprise.
PV Project Experience
Products applied in Iran, Zimbabwe PV projects; KYN61-40.5 project passed 72-hour live test, recognized by overseas customers.
Service Guarantee
7*24 on-site support, 1-year free warranty, 5-year latent defect protection, PV-specific technical training.

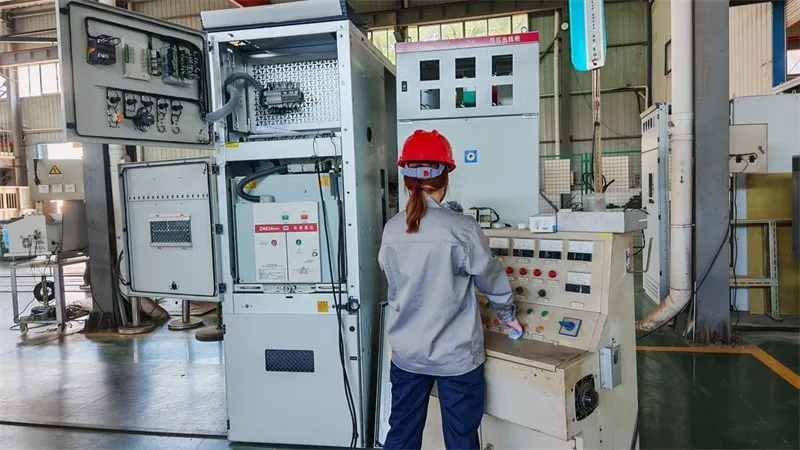

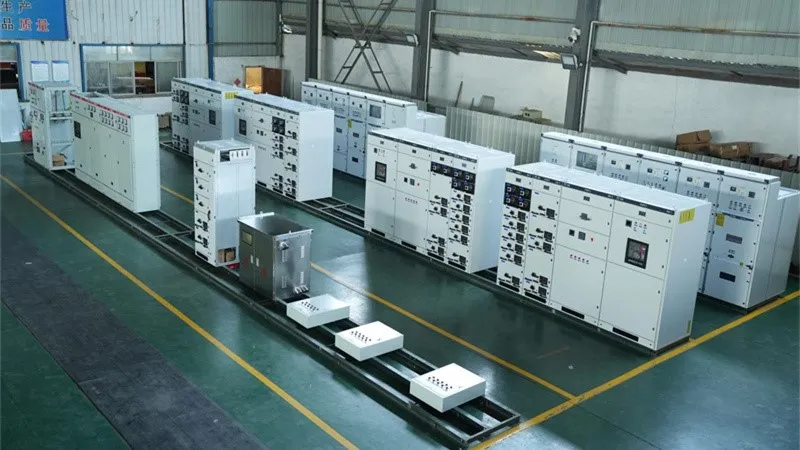

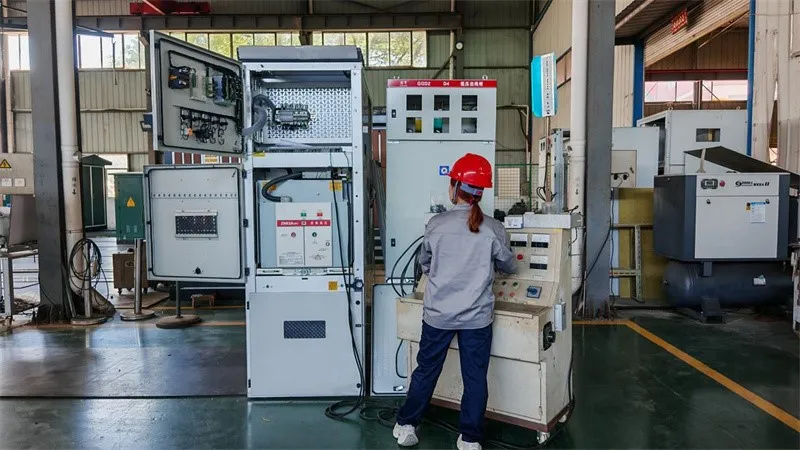

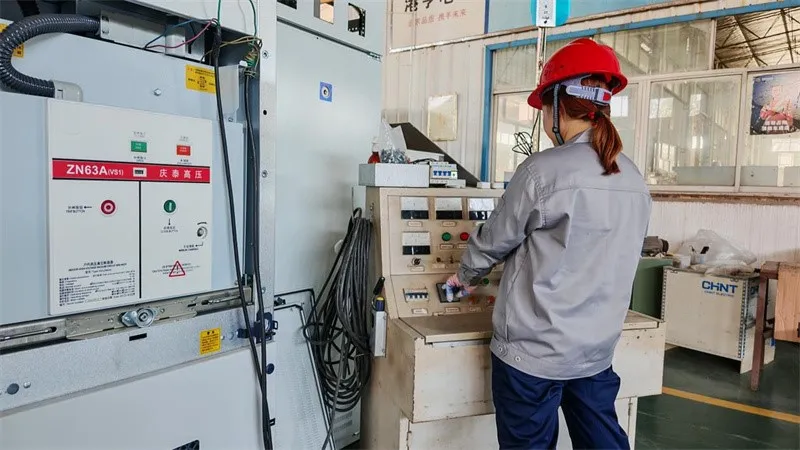

Advanced Equipment & Production Features

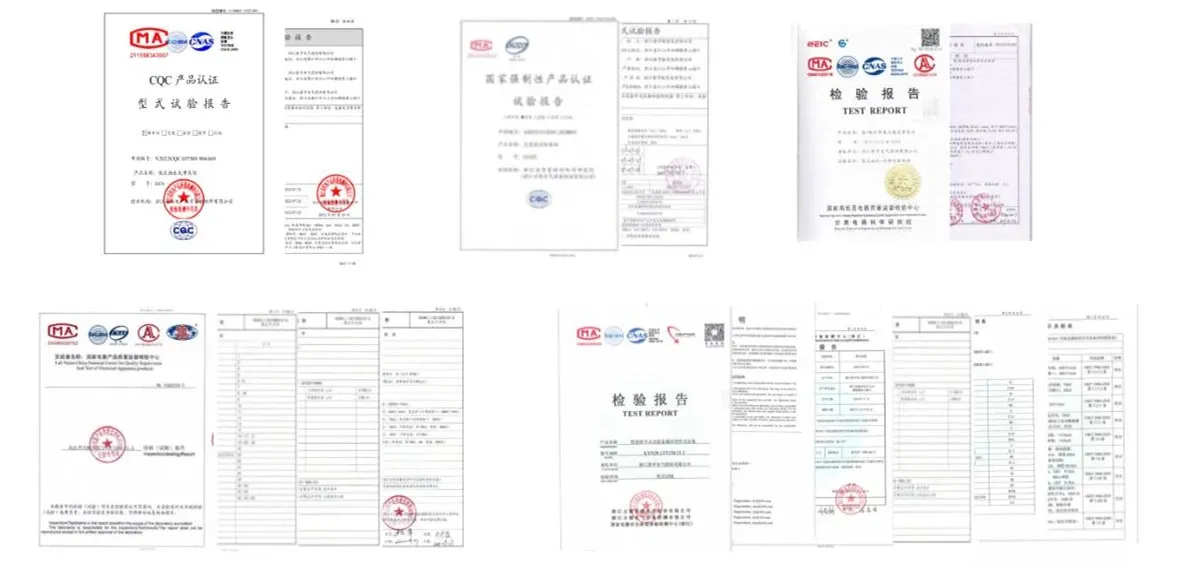

Qualification Certificates & Achievements

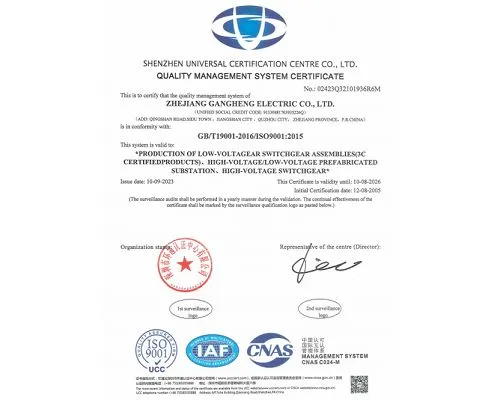

ISO9001, ISO14001, OHSAS18001, CQC Product Certification, high-voltage cabinet type test report, various patent certificates.
Trusted partner for large / medium / small projects; KYN61-40.5 project passed 72-hour live test, recognized by overseas customers; 10-year stable cooperation with Wangpai Home Furnishings.
After-Sales Service
- 1-year free warranty (parts + labor) from PV station commissioning; 5-year latent defect protection; free replacement for quality issues.
- 7*24 PV-specific technical consultation; on-site guidance for PV grid connection; customized training for PV operation teams.
- PV transformer maintenance at competitive prices; spare parts supply for 20 years; never refuse repair requests.
FAQ
